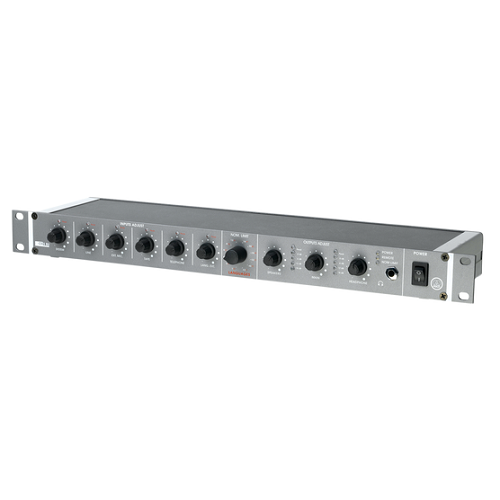

AKG CS5 BU Conference Base Unit
- Meticulous all-in-one digital solution for complex conference systems
- Communicate with your CS5 conference system in a daisy-chained manner
- Connects up to 50,000 microphones, interpreters, and voting stations
- Supports the transmission of audio to infrared transmitters
- Capable of controlling delegate and chairperson microphones
- Controls up to 64 audio channels
- Switch between standalone or computer-controlled operation
- Provides up to 5 external inputs and 4 outputs for ranges of external system extensions
- Failsafe power supply concept via decentralised redundant closed-circuit audio bus
- Basic control software is included in the package
AKG CS5 BU Conference Base Unit Description
The AKG CS5 BU Conference Base Unit is an intelligent all-in-one digital controller designed for systems of any size and complexity, including CS 5 system configuration. This base unit is useful for the reference digital conference system and it integrates the central intelligence for discussion, interpretation, voting and language distribution in a compact 1HU, 19-inch housing. With the ability to accommodate up to 5,000 AKG delegates, every microphone and interpreter connected to this meticulous device is daisy-chained, using cost-effective, standard CAT 5 cables, and can be customised in a closed-circuit digital audio bus.
The interface of this device has been designed to accommodate every necessary input and outputs to manage a complex conference system. Additionally, this base unit controls up to 64 audio channels that can be configured for discussion or interpretation purposes. The AKG CS5 BU Conference Base Unit is the perfect solution to manage and control the entire setup of your AKG CS5 systems.
Advanced Audio Processing
The AKG CS5 BU Conference Base Unit is embedded with advanced audio processing technology, ensuring crystal-clear sound reproduction with exceptional clarity and fidelity. This professional-grade digital audio controller is capable of connecting ranges of microphones, interpreters, and voting stations, and can control up to 64 audio channels. Additionally, it drives audio to infrared transmitters, ensuring a smooth operation.
Flexible Connectivity
Bringing ease to complex conference systems, this compact all-in-one digital solution provides a range of connectivity options, including analog and digital inputs and other outputs. Whether you are connecting microphones, interpreters, and voting stations, this base unit provides daisy-chain integration with your existing setup.
Intuitive Controls
Featuring an intuitive user interface and easy-to-use controls, the AKG CS5 BU Conference Base Unit puts you in complete control of your audio conferencing experience. You can adjust volume levels, configure audio settings, and manage conference calls with precision and ease.
What's In The Box?
- AKG CS 5 BU Conference System Base Unit
- CS 5 Basic Control Software
AKG CS5 BU Specifications
Phantom Power
- 48 V
Power Requirement
- 3 W, minimum
- 4 W, maximum
Input Voltage
- 46 VDC, minimum
- 48 VDC, nominal
- 50 VDC, maximum
Balanced Input Level
- 0 dBu, nominal
- +6 dBu, maximum
Unbalanced Input Level
- -10 dBu, nominal
- -4 dBu, maximum
Mic Input Level
- -40 dBu, nominal
- -34 dBu, maximum
Input Impedance
- 20k ohms, balanced
Output Impedance
- 1k ohm
Balanced Output Level
- 0 dBu, nominal
- +6 dBu, maximum
Unbalanced Output Level
- -10 dBu, nominal
- -4 dBu, maximum
Output Frequency Range
- 20 Hz - 20 kHz - line out, telephone out, effect out, tape out
- 45 Hz - 22 kHz - headphone out
Headphone Output Power
- 90 mW, nominal
- 200 mW, maximum
Dimensions
- 1.75 x 18 x 4.25" (44 x 482 x 108 mm)
Weight
- 3.2 lb (1450 g)
More Information
| SKU | 7650X01000 |
|---|---|
| Brand | AKG |
| Audio Conference Type | Base Station |
| Multiple Part Calling | No |
| With Display | No |
