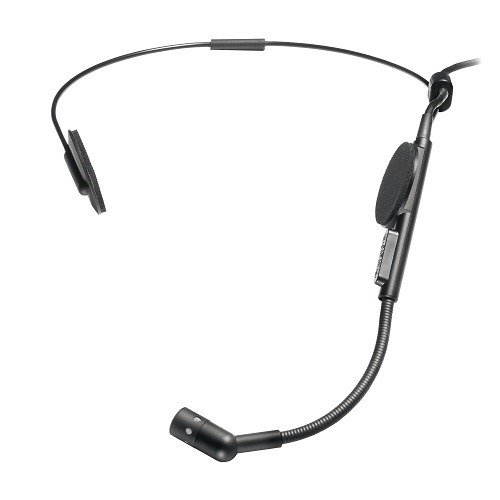

Audio-Technica ATM75 Cardioid Condenser Headworn Microphone
- Reproduces spoken, and vocal audio in higher quality
- Cardioid polar pattern technology improves voice pickup
- Low-profile design, offering minimal visibility
- Strategically constructed headband provides a stable and comfortable fit
- Pivot-mounted flexible microphone for effortless side-mouth pickup
Audio-Technica ATM75 Cardioid Condenser Headworn Microphone Description
Experience a new level of audio reproduction with the Audio-Technica ATM75 Cardioid Condenser Headworn Microphone–an exceptional microphone that boasts hands-free operation and provides a professional-quality of vocal or spoken audio pickup. Featuring a flexible, low-profile headband that ensures stability and comfort to the head, the ATM75 improves effortless manageability and hands-free operation. Furthermore, this headworn microphone is engineered with a cardioid polar pattern, an innovative audio pickup technology that improves isolation of only the desired sound source.
Crystal-clear Audio Reproduction
Providing excellent, professional-grade audio pickup, the ATM75 head-worn microphone ensures unparalleled voice reproduction. It ensures only the speaker’s voice is captured for an engaging voice interaction, thanks to the cardioid polar pattern. Furthermore, it features a pivot-mounted flexible microphone which allows for appropriate channelling to sound source.
Unobtrusive Design for Discreet Elegance
Striking a low-profile, discreet design, this head-worn microphone helps you appear professional. Its ergonomic design contributes to ease of use and all-day comfort, plus it is durable despite being constructed low-profile.
Simple Configuration
A 55-inch permanently attached miniature cable terminated with a screw-down 4-pin connector is included in the ATM75 for use with Audio-Technica cH-style or cW-style body-pack wireless transmitters for excellent audio reproduction performance.
What's In The Box?
- Audio-Technica ATM75 Cardioid Condenser Headworn Microphone
- AT8128 Windscreen
- AT8125 Windscreen
Audio-Technica ATM75 Specifications
Microphones
- Element: Fixed-charge back plate, permanently polarised condenser
- Polar Pattern: Cardioid
- Frequency Response: 100 - 13,000 Hz
- Low-Frequency Roll Off: 80 Hz, 18 dB/octave (wired only)
- Open Circuit Sensitivity: Phantom: -51 dB (2.8 mV) re 1V at 1 Pa | Battery: -53 dB (2.2 mV) re 1V at 1 Pa
- Maximum Input Sound Level: Phantom: 132 dB SPL, 1 kHz at 1% T.H.D. | Battery: 121 dB SPL, 1 kHz at 1% T.H.D.
- Signal-to-Noise Ratio: 58 dB, 1 kHz at 1 Pa
- Phantom: Power Requirements: 11-52V DC, 2 mA typical | Battery Type: 1.5V AA/UM3
- Battery Current/Life: 0.4 mA / 2000 hours typical (alkaline) (wired only)
- Switches: Off, on-flat, on-roll-off (wired only)
Dynamic Range:
- Phantom: 96 dB, 1 kHz at Max SPL
- Battery: 85 dB, 1 kHz at Max SPL (wired only)
Weight:
- Microphone: 60 g (2.1 oz)
- Power module: 139 g (4.9 oz)
Cable:
- 4.6' (1.4 m) long (permanently attached to microphone), 0.11" (2.8 mm) diameter, 2-conductor shielded cable (termination dependent)
Dimensions:
- Microphone: 20.4 mm (0.80") diameter
- Power module (wired only): 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D
- Headset: 120.0 mm (4.72") nominal at widest point, 80.5 mm (3.17") flexible boom
Output Connector:
- Power module: Integral 3-pin XLRM-type (wired only)
Accessories Included:
- AT8531 power module (wired only); AT8439 clothing clip; AT8139L large windscreen; AT8139S small windscreen; battery (wired only)
More Information
| Delivery Option | 15-20 Working Days |
|---|---|
| SKU | ATM75 |
| Accessories Brand | Audio-Technica |
| Accessories Type | Microphone |
| Connection Type | Wired |
| Condition | New |
