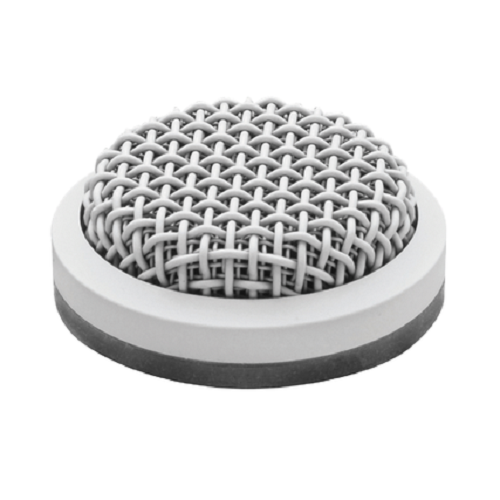

Audio Technica ES945 Omnidirectional Condenser Boundary Microphone
- Designed for surface-mount applications
- Offers a uniform omnidirectional polar pattern with a 360º acceptance angle
- Provides multiple mounting options
- Supports a self-contained power module with an XLRM-type output connector
- Features isolators for mounting surface vibration and a rugged all-metal case with a two-layer steel mesh grille
- Supports 11V to 52V DC phantom power
- Offers UniGuard® RFI-shielding technology
Audio Technica ES945 Omnidirectional Condenser Boundary Microphone Description
For high-quality sound reinforcement, professional recording, and teleconferencing, the ES945 Omnidirectional Condenser Boundary Microphone from Audio Technica is the perfect choice for you. The ES945 microphone is designed for surface mount applications, enabling multiple mount options for users such as table, wall panels, or ceiling mounting with a measurement of a maximum 45 mm panel thickness and in a 24 mm diameter hole of the surface. The ES945 offers a low-profile element with a uniform omnidirectional polar pattern with a 360º acceptance angle. A self-contained power module with an XLRM-type output connector and 11V to 52V DC phantom power provides adequate power for the microphone to function properly. Integrated into the ES945 microphone is an isolator designed for mounting surface vibration and a rugged all-metal case with a two-layer steel mesh grille. UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI) for quality audio performance.
Versatile Mount Options
Never be concerned about where to mount your microphone with the ES945 microphone that offers users versatile mount options. You can unobtrusively mount the ES945 on table tops, wall panels, or even ceilings, saving user's rack space while giving the room a professional look.
Advanced UniGuard® RFI-shielding Technology
The ES945 microphone features UniGuard® RFI-shielding technology that offers outstanding rejection of radio frequency interference, enabling quality audio performance for users. Quality sound is delivered during speech with no break in transmission. With this, users can enjoy seamless communication.
Omnidirectional Polar Pattern
For ideal flow in communication, recordings, or teleconferencing, the ES945 microphone is the perfect choice for you with the featured omnidirectional polar pattern. An omnidirectional polar pattern picks up sound in a 360-degree radius–sensitive to sound at all angles, front, back, and all sides.
What's In The Box?
- Audio Technica ES945 Omnidirectional Condenser Boundary Microphone
- Isolator
Audio Technica ES945 Specifications
Element
- Fixed-charge back plate
- Permanently polarised condenser
Polar Pattern
- Omnidirectional
Frequency Response
- 40-18,000 Hz
Open Circuit Sensitivity
- –42 dB (7.9 mV) re 1V at 1 Pa*
Impedance
- 200 ohms
Maximum Input Sound Level
- 142 dB SPL
- 1 kHz at 1% T.H.D
Dynamic Range (typical)
- 112 dB, 1 kHz at Max SPL
Signal-To-Noise Ratio1
- 64 dB
- 1 kHz at 1 Pa*
Phantom Power Requirements
- 11-52V DC
- 2 mA typical
Weight
- 63 g (2.2 oz)
Dimensions
- 28.0 mm (1.10") diameter
- 69.0 mm (2.72") length
Output Connector
- Integral 3-pin XLRM-type
Accessory Furnished
- One pair of isolators
More Information
| Delivery Option | 15-20 Working Days |
|---|---|
| SKU | ES945 |
| Accessories Brand | Audio-Technica |
| Accessories Type | Microphone |
| Connection Type | Wired |
| Mount Type | Ceiling Mount |
| Condition | New |
