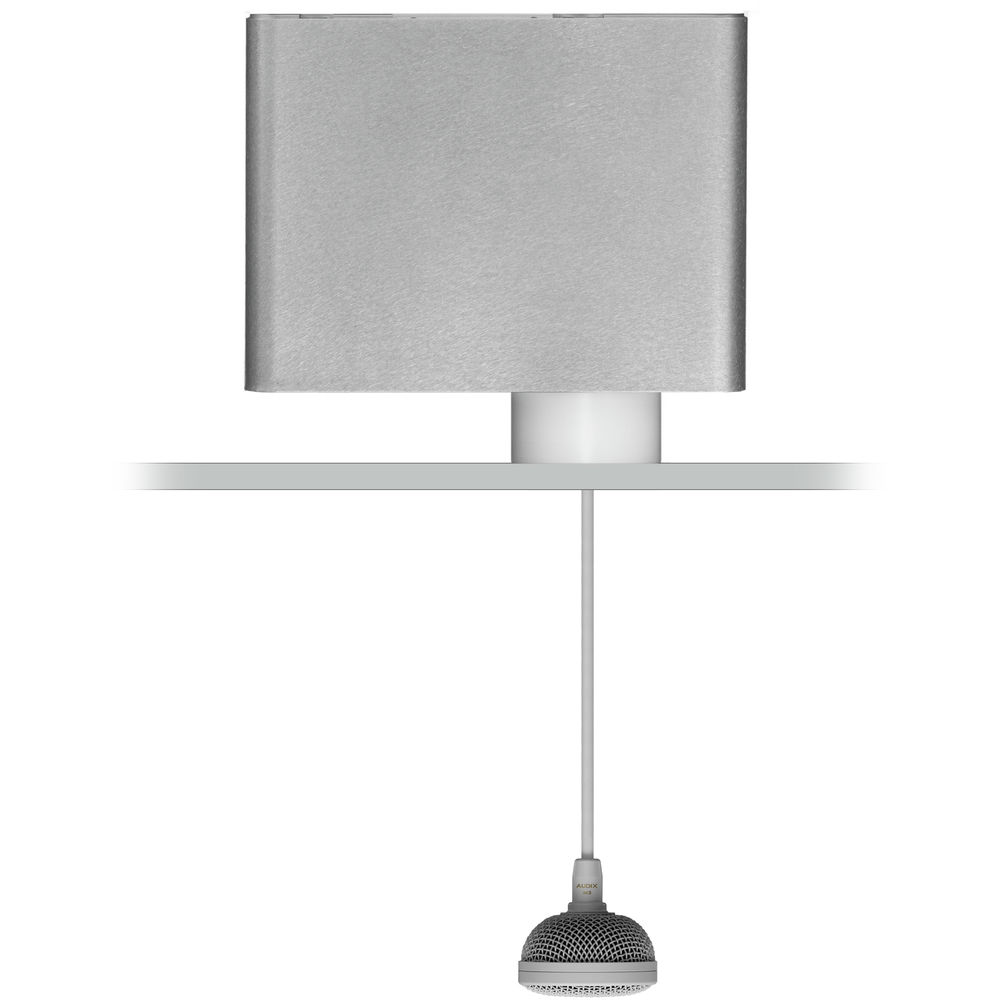

Audix M3GSERVO Tri-Element Hanging Ceiling Microphone for Servoreelers (Gray)
- For the precision microphone retraction system (Servoreeler)
- Engineered with 100% RF shielding and immunity
- Features gold-diaphragm hyper-cardioid capsules with studio-quality sound
- Offers frequency and pattern tailored for voice clarity and rejection of extraneous noise
- Provides high-quality silicone-jacketed microphone cable with adjustable length and position
- Supports plenum rated and is TAA-compliant
- Designed in a low-impedance design that allows for extremely long cable runs
Audix M3GSERVO Tri-Element Hanging Ceiling Microphone for Servoreelers (Gray) Description
Need an outstanding microphone for video conferencing, distance learning, courtroom activities, and surgical procedures? The M3GSERVO microphone with a gray finish is the ideal audio solution for you. This microphone is for the precision microphone retraction system of the Servoreeler that is designed to deploy, position, and retract a suspended microphone. Engineered with 100% RF shielding and immunity, it eliminates noise in the application room and it features gold diaphragm hypercardioid capsules to deliver studio-quality sound. The microphone offers a frequency of 30 Hz to 19 kHz and a pattern tailored for voice clarity with the capability to reject extraneous noise that might interfere with the audio signal reproduction. A high-quality silicone jacketed microphone cable that is adjustable in length and position allows it to be easily concealable and it is plenum-rated supported. The microphone is TAA compliant, which makes it a product that meets the requirements of the United States Trade Agreements Act (TAA), making it suitable for military organisation application rooms. The M3GSERVO microphone is designed in a low impedance design that allows for extremely long cable runs.
Excellent Audio Signal
The M3GSERVO microphone is designed to evenly disseminate sound with an undetectable phase thanks to the hypercardioid capsule. The microphone features three hypercardioid capsules with an off-axis rejection acceptance angle of>23 dB at 180° (1 Capsule), >18 dB at 120° (2 Capsules), and >9 dB at 60° (3 Capsules). This ensures the microphone captures audio at different angles of the application rooms with an incredible sensitivity lobe of 34 mV/Pa at 1 kHz.
Low Impedance Design
The M3GSERVO microphone features a low-impedance design that has a common range impedance of 150 ohms. With the ability of the low impedance design to drive very long cables, the microphone cable measures 4’ in length with a balanced output. You can conveniently run the microphone overhead in the application room since the microphone requires you to hang it on the ceiling. The cable is plenum-rated with special insulation that has low smoke and low flame characteristics. This ensures your microphone is well-protected against a power surge.
What's In The Box?
- Audix M3GSERVO Tri-Element Hanging Ceiling Microphone for Servoreelers (Gray)
- Audix CBLM3TERM Breakout Cable for M3 Microphone, RJ45 Female to 3 Phoenix
Audix M3GSERVO (Gray) Specifications
Element Type
- Electret Condenser
Polar Pattern
- Hypercardioid
Frequency Range
- 30 Hz to 19 kHz
Maximum SPL
- 128 dB SPL
Analog Output
- 1x RJ45
Power Sources
- Phantom Power
Off-Axis Rejection
- >23 dB at 180° (1 Capsule)
- >18 dB at 120° (2 Capsules)
- >9 dB at 60° (3 Capsules)
Impedance
- 150 Ohms (Balanced)
Sensitivity
- 34 mV/Pa at 1 kHz
Dynamic Range
- 106 dB
Signal-to-Noise Ratio
- 72 dB
Equivalent Noise Level
- 22 dB A-Weighted
Operating Voltage
- 18 to 52 V (Phantom Power)
Colour
- Gray
Dimensions
- ø: 2 x L: 1.2" / ø: 50 x L: 30 mm
Weight
- 3.4 oz / 95 g
More Information
| Delivery Option | 15-20 Working Days |
|---|---|
| SKU | M3GSERVO |
| Accessories Brand | Audix |
| Accessories Type | Microphone |
| Connection Type | Wired |
| Mount Type | Ceiling Mount |
| Type | Audio Adapter |
| Meeting Solutions | UC |
| Colour | Grey |
| Condition | New |
