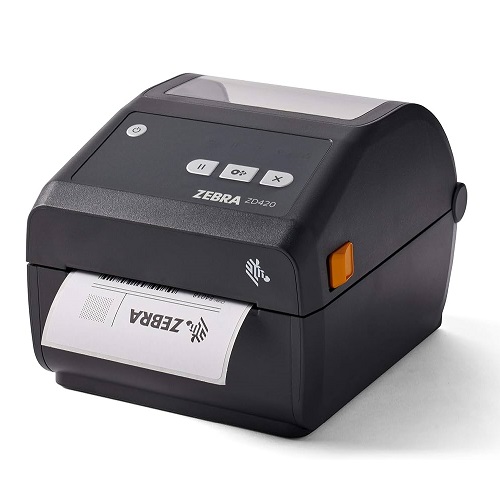

Zebra ZD420 Thermal Transfer Desktop Printer
- Ideal for a wide range of applications and is available in a healthcare model
- Supports Link-OS
- Deliver superior printing experience with a thermal transfer printing method
- Supports multiple connectivity and media handling options
- Easy-to-use clamshell design and an intuitive interface
- Features powerful Print DNA suite of applications and total cost of ownership
- Offers simplified remote manageability and easy integration
- Designed with a removable desktop battery power option
Zebra ZD420 Thermal Transfer Desktop Printer Description
Introducing the Zebra ZD420 Thermal Transfer Desktop Printer, a must-have accessory in the workspace. This printer is ideal for a wide range of applications and is available in a healthcare model with disinfectant-ready that makes it easy to clean and disinfect. It works with the Link operating system which makes it easier to manage and troubleshoot remotely. The printer delivers a superior printing experience with its thermal transfer printing method, allowing you to use ribbon in the printing process.
The ZD420 printer supports multiple connectivity options that allow you to connect it to your existing wired and wireless networks, or directly to any PC with its standard USB Host. Designed with an easy-to-use clamshell design and an intuitive interface, the printer features a three-button with five LED status indicators that allow users to instantly see what is needed to keep the printer up and running. It features a powerful Print DNA suite of applications, utilities, and developer tools that easily allows you to configure the printers to secure connections, block unwanted access, and ensure your data and infrastructure are protected. With simplified remote manageability and easy integration, the ZD420 printer ensures seamless integration with your device management system. The thermal printer supports a removable desktop battery power option to increase productivity and improve task accuracy.
Simple User-Friendly Interface
The Zebra ZD420 Thermal Transfer Desktop Printer is designed to work with the Link operating system, enabling you to manage and troubleshoot your networked printers remotely. The ZD420 can easily be installed thanks to its simple user-friendly interface, allowing it to be instantly discovered on your network, saving you the hassle of walking through the facility to locate, configure, or troubleshoot the printer. The intuitive browser-based interface allows you to see the printer status at a glance to minimise downtime when working.
Healthcare Model
The ZD420 printer is available in a healthcare model with disinfectant-ready, the printer features UV-resistant plastics and a sealed button interface. The printer is easy to clean and disinfect thanks to its healthcare-compliant. The optional locking media cabinet blocks unauthorised access to high-value media like blank prescription forms.
Multiple Connectivity Options
The ZD420 Thermal Transfer Desktop Printer is integrated with multiple connection options, allowing you to connect the ZD420 to existing wired and wireless networks, or directly to any PC via a standard USB Host. The USB Host port makes it easy to connect to all your external devices, including keyboards and scanners, which can be utilised to upgrade printer firmware automatically or to set up new printer configurations. You can choose the Ethernet or serial and dual wireless radio option that offers the very latest wireless technology, Wi-Fi 802.11ac, and MFi-certified Bluetooth 4.1, which enables printing from any iOS device. With the included Print Touch tag (NFC), you can simply tap a compatible mobile device on the ZD420 to pair and print.
Zebra OneCare Service
The ZD420 printer supports Zebra OneCare Service which provides software support, enabling you to have access to repair support services without seeking external support when it is faulty. Zebra OneCare provides enhanced coverage including a standard warranty for normal wear and tear, and priority repair turnaround, ensuring a tiny fraction of the cost of a single repair is covered.
What's in the Box?
- Zebra ZD420 Thermal Transfer Desktop Printer
- Empty Ribbon Take-up cores (1 in. and 0.5 in.)
- 300m Ribbon Core Adapters for non-Zebra ribbon (2)
- AC Power Supply,
- Power Cord(s)
- USB Cable
- Quick Start Guide
- Regulatory Guide
Zebra ZD420 Thermal Transfer Desktop Printer Specifications
Physical Characteristics
Dimension
ZD420d
- 8.69 in. L x 6.98 in. W x 5.93 in. H
- 220.8 mm L x 177.5 mm W x 150.7 mm H
Weight
- ZD420d: 3.6 lbs./1.6 kg
Operating System
- Link-OS®
Resolution
- 203 dpi/8 dots per mm
- Optional 300 dpi/12 dots per mm
- Resolution can be factory installed or changed on site via accessory kits
- Resolution can be changed from 300 dpi to 203 dpi, as well as from 203 dpi to 300 dpi
Memory
- 512 MB Flash; 256 MB SDRAM for factory-installed network connectivity options
- 512 MB Flash; 128 MB SDRAM for printers without factory-installed network connectivity options
Maximum Print Width
- 4.09 in./104 mm for 203 dpi
- 4.27 in./108 mm for 300 dpi
Maximum Print Speed
- 6 in./152 mm per second (203 dpi)
- 4 in./102 mm per second (300 dpi)
Media Sensors
- Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Firmware
- ZPL II; EPL 2; XML; ZBI
Media and Ribbon Characteristics
Maximum Label Length
- 39.0 in./991 mm
Media Width
- 0.585 in./15 mm to 4.65 in./118 mm
Media Roll Size
- Maximum outer diameter: 5.00 in./127 mm
- Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in.
- (25.4 mm) standard, 1.5 in. (38.1 mm), 2.0 in.,
- (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters
Media Thickness
- 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max
Media Types
- Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter
- 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Ribbon Standard Length
- 984 ft. (300 m); 244 ft. (74 m)
Ribbon Ratio
- 1:4 media to ribbon (300 m)
- 1:1 media to ribbon (74 m)
Ribbon Width
- 1.33 in./33.8 mm — 4.3 in./109.2 mm
Ribbon Core I.D.
- 300-meter ribbon 1 in./25.4 mm
- 74-meter ribbon 0.5 in./12.7 mm
Operating Characteristics
Operating Temp.
- 40° to 105° F/4.4° to 41° C
Storage Temp.
- -40° to 140° F/-40° to 60° C
Operating Humidity
- 10% to 90% non-condensing
Storage Humidity
- 5% to 95% non-condensing
Electrical
- Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified; optional 2750 mAh battery
Options and Accessories
Media Handling
- Field installable dispenser — label peel and present with label present sensor; field installable cutter
Communications
- Field installable RS-232 auto-sensing Serial, DB-9;
- Factory installed or field installable Ethernet — 10/100 internal; factory installed wireless dual radio:802.11ac Wi-Fi and Bluetooth 4.1; Bluetooth Low Energy included as standard on network connected models
Battery
- Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
Real-Time Clock
- Real-time clock included as standard on network-connected models
Keyboard Display Unit
- ZKDU keyboard display units for stand-alone printing solutions
Media Locking Cabinet
- Mechanical lock with 2 keys; Kensington® lock slot; available on ZD420d Healthcare only
Carrying Case
- Carrying case with shoulder strap and handles makes it easy to bring your desktop printer (ZD420 and ZD620 Series) to the point of application
Mounting Plate
- Optional accessory to secure ZD Series printers to countertops or shelves
Enclosed Power Supply
- Attached power supply accessory for cord-free installation
Fonts/Graphics/Symbologies
Bar Code Ratios
- 2:1 and 3:1
1D Bar Codes
- Code 11, Code 39, Code 93, Code 128, IS BT-128, UPC-A, UPC-E, EAN -8, EAN -13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Bar Codes
- Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics
- 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM
Regulatory
- IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Print DNA Software
- This printer is supported by our powerful Print DNA suite of applications, utilities, and developer tools that give our printers better performance, simplified remote manageability, and easier integration. Print DNA features may vary by model and may require a Support Contract. For more information, please visit www.zebra.com/printdna.
Recommended Services
- Zebra OneCare SV
Product Warranty
- ZD420 printers are warranted against defects in workmanship and materials for 2 (two) years from the date of shipment. For the complete warranty statement, please visit www.zebra.com/warranty.
More Information
| Delivery Option | Same/Next Day Delivery |
|---|---|
| SKU | ZD420T |
| Brand | Zebra |
| Interface | Wireless |
| Print Resolution | 203 dpi |
| Printer Method | Thermal Transfer |
| Printer Type | Desktop |
| Maximum Print Width | 2.2'' max width |
| Label Printers Type | Desktop Printers |
