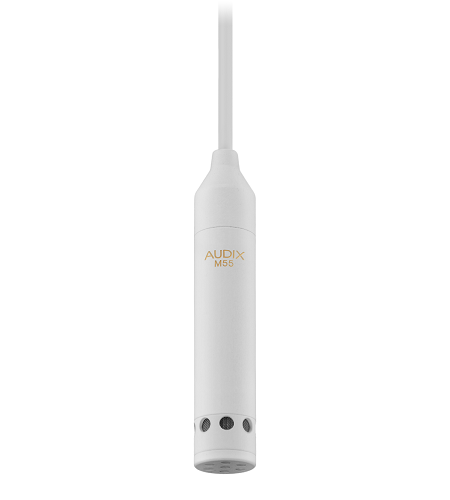

Audix M55WHC Hypercardioid Hanging Ceiling Microphone with Height Adjustment
- Hi-Output mic for distance miking
- Discreet mic optimised for voice recognition
- Provides 100% immunity from RF interference
- Fingertip height adjustment and rotation control
- Only requires drilling one 5/8-inch hole in the ceiling
- Hypercardioid provides the most rejection of ambient noise
- Integrated low noise preamp circuitry boosts signal strength
- Height adjustment ensures flexible microphone placement
- For ambient room milking, video teleconferencing, boardrooms, and surveillance
Audix M55WHC Hypercardioid Hanging Ceiling Microphone with Height Adjustment Description
Need an excellent microphone for precise distance miking in applications such as video teleconferencing, distance learning, boardrooms, medical procedures and surveillance? Look no further than this White M55WHC Hypercardioid Hanging Ceiling Microphone with Height Adjustment from Audix. The microphone features a hypercardioid capsule tailored for voice clarity to deliver speech intelligibly, enabling you to hear speech clearly from every angle of installation. It is also optimised for voice recognition, providing quality audio at the DSP with a 60 Hz–10 kHz frequency response. For seamless communication flow in application rooms, the microphone integrates RF shielding and immunity to effortlessly eliminate noise. Audix M55WHC microphone has a low-impedance design that gives your room a professional look. It can withstand the rigours of daily use, maintaining reliability for years.
Hypercardioid Polar Pattern
Hypercardioid capsule infused into the microphone provides the most rejection of ambient noise with a narrower front lobe. This focused pickup angle allows for excellent noise and feedback rejection, so the speakers' voices come out with precise clarity. The M55WHC microphone also has a maximum SPL level of ≥ 130 dB with a THD of 0.5%. Additionally, the electronics feature a balanced signal output that effectively inhibits RF interference from your mobile devices.
Height Adjustment
The M55WHC offers exceptional flexibility in microphone positioning thanks to its height adjustment feature. The featured height adjustment allows you easily customise the microphone's positioning to precisely pick up voices in any scenario. M55WHC hanging ceiling microphone excels where aesthetics, sound quality, and ease of installation are critical.
Efficient Installation
The M55WHC microphone provides a convenient installation process that allows for easy setup without the need to drill a hole in your conference or application room ceiling. The mounting hardware enables easy adjustment of the hanging height up to four feet from the ceiling surface without the need to remove ceiling tiles. It also provides convenient fingertip control for adjusting the height and rotation.
What's In The Box?
- Audix M55WHC Hypercardioid Hanging Ceiling Microphone with Height Adjustment
- CONN170F - 1’ integrated mic cable with a terminal block connector
- CONN170M - Mating terminal connector for solder-less connection
- JBM55 - Metal plenum junction box with seismic and fire safety cable restraint where required by code
Audix M55WHC Specifications
General:
- Colour: white
- Transducer Type: Condenser
- Frequency Response: 60 Hz - 10 kHz
- Polar Pattern: Hypercardioid
- Output Impedance: 150 ohms
- Sensitivity: 37 mV (C), 32 mV (HC), 40mV (O), 60 mV (S) / Pa @ 1k
- Equivalent Noise Level: 22 dB (A-weighted)
- Signal-to-Noise Ratio: 72 dB
- Maximum SPL: ≥130 dB
- Dynamic Range: 108 dB
- Power Requirements: 18 - 52 V phantom
- Connector: Terminal Block Connector
- Polarity: Positive pressure on the diaphragm produces positive voltage on pin 2 relative to pin 3 of the output XLR connector
- Materials / Finish: Aluminium & Zinc Alloy / White.
More Information
| Delivery Option | 15-20 Working Days |
|---|---|
| SKU | M55WHC |
| Accessories Brand | Audix |
| Accessories Type | Microphone |
| Connection Type | Wired |
| Mount Type | Ceiling Mount |
| Type | Audio Adapter |
| Meeting Solutions | UC |
| Condition | New |
