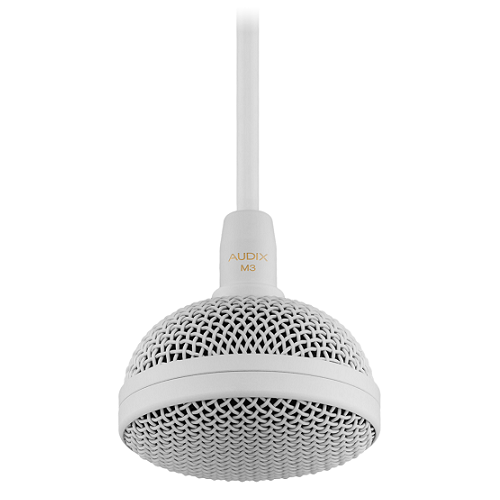

Audix M3 Tri-Element Hanging Ceiling Microphone with 4' Cable (White)
- Provides 100% RF shielding and immunity
- Features three hyper-cardioid capsules
- Offers speech intelligibility with tailored frequency response
- RJ45 breakout cable to 3 x terminal block
- High-quality silicone jacketed microphone cable with adjustable length and position
- Includes plenum-rated junction box and seismic/fire strain relief
- Comes with a low-impedance design
- Easy installation procedure
Audix M3 Tri-Element Hanging Ceiling Microphone with 4' Cable Description
For application rooms where aesthetics and sound quality delivery are needed, the M3 Tri-Element Hanging Microphone is the perfect audio pick-up tool for you. It is designed to deliver exceptional audio quality for video conferencing, distance learning, courtrooms, and other application rooms. The provision of 100% RF shielding and immunity in the M3 microphone minimises noise and ensures a balanced signal in audio reproduction. This microphone features three hypercardioid capsules that offer speech intelligibility thanks to its tailored frequency response of 30 Hz–19 kHz. Connection of the microphone is made via RJ45 breakout cable to 3 x terminal block and the microphone includes a plenum-rated junction box and seismic/fire strain relief. With its low-impedance design, the M3 microphone is easy to install in application rooms with a drill not more than a 5/8" hole in the ceiling.
Triple Hypercardioid Polar Pattern
M3 microphone features three hypercardioid capsules that have incredible pick-up patterns and sensitivity. The hypercardioid capsule is designed to specifically pick up audio from a point when it is properly positioned, which makes it a perfect fit for distance learning and other application rooms that require audio pick-up from a specific point. The hyper-cardioid has a sensitive lobe of 34 mV / Pa @ 1k and a great isolation capability of a specific sound source. You can be rest assured that specific sounds will be captured when using this microphone thanks to its extreme directionality.
Exceptional Audio Quality
With the M3 microphone, users can experience exceptional audio quality. The microphone offers speech intelligibility that enables participants to hear crisp and crystal-clear speech thanks to its optimised tailored frequency response of 30 Hz – 19 kHz and an optimised frequency response of 70 Hz–9 kHz.
Quick Installation Process
Conveniently install the ceiling of the application with a drill not more than a 5/8" hole drilled into the ceiling. The included plenum-rated junction box helps conceal the electronics above, effortlessly housed into the junction box away from sight.
What's In The Box?
- Audix M3 Tri-Element Hanging Ceiling Microphone with 4' Cable (White)
- JBM3 Plenum-Rated Junction Box
- ANCHRJB60V2 Seismic/Fire Strain Relief
- CBLM3TERM Breakout Cable
Audix M3 Tri-Element Hanging Ceiling Microphone with 4' Cable (White) Specifications
Transducer Type
- Pre-Polarized Condenser
Frequency Response
- 30 Hz – 19 kHz
Optimised Response
- 70 Hz – 9 kHz (see chart)
Polar Pattern
- Hypercardioid
Output Impedance
- 150 Ohms balanced
Sensitivity
- 34 mV / Pa @ 1k
O Axis Rejection
- 1 capsule >23 dB at 180º relative to 0º
- 2 capsules >18 dB at 120º
- 3 capsules >9 dB at 60º
Signal/Noise Ratio (A-weighted)
- 72 dB
Equivalent Noise Level (A-weighted)
- 22 dB (A-weighted)
Maximum SPL @ .5% THD
- ≥128 dB
Dynamic Range
- 106 dB
Power Requirements
- 18–52 Volts phantom
Cable/Connector
- Terminal block or XLR
Polarity
- Positive pressure on the diaphragm produces positive voltage on pin 2 relative to pin 3
Weight
- 95 grams (mic only) / 3.32 ounces
Diameter
- 50mm (2 inches)
Length
- 30mm (1.2 inches)
More Information
| Delivery Option | 15-20 Working Days |
|---|---|
| SKU | M3W |
| Accessories Brand | Audix |
| Accessories Type | Microphone |
| Connection Type | Wired |
| Type | Audio Adapter |
| Meeting Solutions | UC |
| Condition | New |
