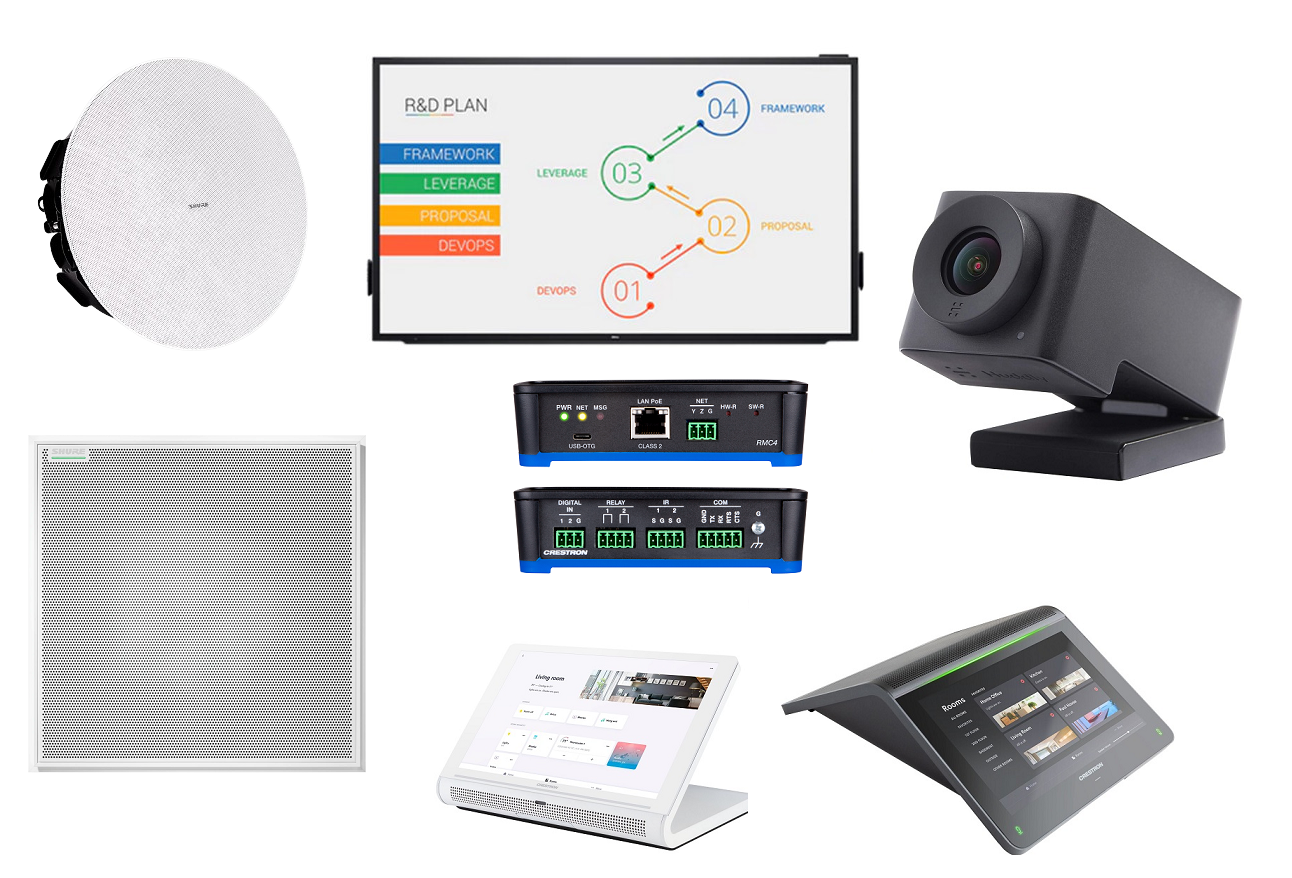

Crestron and Shure Wireless Audio & Video Conferencing Solution Specifications

Crestron Flex Advanced Video Conference System Integrator Kit with a Wall Mounted Control Interface Specs

Included Components

• TSW‑1070‑B‑S: 10.1 in. (257 mm) wall mount touch screen, black
• UC‑BRKT‑260‑P‑Z‑ASSY: UC Bracket Assembly for Zoom Rooms systems, comprised of:

• UC Engine: Mini PC with Zoom Rooms video
• CAT5 to USB 3.0 converter for content ingest
• Mounting hardware
• UC‑PR: UC Presentation Transmitter with Cable Organizer
• CBL‑4K‑DP‑HD‑6: Active Converter Cable, DisplayPort™ to HDMI, 18 Gbps, 6 ft (1.8 m); secondary display
• CBL-CAT5E-7: (3) Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m)
• CBL‑HD‑6: HDMI Interface Cable, 6 ft (1.8 m); primary display
• DM‑CBL‑ULTRA‑PC‑20: Ethernet LAN cable, CAT6a, RJ45‑to‑RJ45, blue, 20 ft (6.1 m)

Wall Mount Touch Screen

• Touch Screen: 10.1 in. (257 mm) diagonal capacitive multi-touch TFT active matrix colour LCD, 1920 x 1200 pixels
• UI: Zoom Rooms UI plus optional Crestron Smart Graphics® room control UI2
• Ethernet: 100 Mbps, auto switching, auto negotiating, auto discovery, full/half duplex, TCP/IP, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1X, SNMP, IPv4 or IPv6, Active Directory® service authentication, HTTPS web browser setup, XiO Cloud® client, IEEE 802.3at compliant
• Power over Ethernet: IEEE 802.3at Type 2 compliant PoE+ PD (Powered Device); Normally requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management; With room scheduling and USB enabled, requests 18 W from an 802.3at Type 2 PSE with LLDP; Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP; Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE
• Power: Powered via PoE passthrough on the UC-PR
• Construction: Plastic, smooth black finish, edge-to-edge glass with black surround
• Dimensions
• Height: 5.87 in. (149 mm)
• Width: 9.46 in. (240 mm)
• Depth: 2.01 in. (51 mm)
• Dimensions do not include mounting bracket or add-on accessories
• Weight: 1.61 lb (730 g)

UC Bracket Assembly

• UC Engine: Mini PC, Intel Core® processor with Windows® 10 IoT Edition OS and 100/1000 Mbps Ethernet connectivity
• UC Client: Zoom Rooms software
• Management Client: XiO Cloud Service
• Content Ingest: HDMI input via CAT5 to USB 3.0 converter
• Display Output: Up to three displays support
• Display Output Resolution: 1080p
• Power: UC Engine: 100‑240VAC, 50/60 Hz adapter (included);
• CAT5 to USB 3.0 converter: 24VDC via external 100‑240VAC, 50/60 Hz power pack (included)
• Construction: Metal mounting bracket, black, preassembled with UC Engine and CAT5 to USB 3.0 content ingest device
• Mounting: Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; Bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate
• Dimensions: Height: 15.00 in. (381 mm)
• Width: 14.50 in. (368 mm)
• Maximum Depth: 1.87 in. (48 mm)
• Maximum Weight: 8.0 lb (3.7 kg)

UC Presentation Transmitter

• Video Input Signal Types: HDMI, DisplayPort 1.2 via USB Type-C® port
• Video Output Signal Types: HDMI over CAT5
• Resolution:1080p
• Video Content Protection: HDCP 1.4 and HDCP 2.2
• Audio Input Signal Types: HDMI, DisplayPort 1.2 via USB Type-C port
• Audio Output Signal Types: HDMI over CAT5
• Communications:

• Ethernet: 100 Mbps, auto-switching, auto negotiating, auto-discovery
• HDMI over CAT5: HDCP, Ethernet
• HDMI: HDCP
• USB: USB 2.0 and USB 3.0

• Connectors

• LAN PoE, 8-pin RJ-45
• (1) ACC, USB 3.0 Type-B;

• For firmware loading only

• (1) USB 2.0 Type-A
• (1) USB 2.0 Type-B
• (1) USB 2.0 Type-C
• (1) HDMI IN
• (1) To RX, 8-pin RJ-45
• (1) DC power connector
• (1) LAN, 8-pin RJ-45
• (1) Ground, 6-32 screw

• Indicators

• PWR: (1) Green LED, indicates operating power supplied via power supply
• Ethernet: (2) LEDs on To RX port;
• Green indicates Ethernet link status;
• Amber indicates Ethernet activity

• Power Supply: 24VDC, 3.75A, 100-240VAC, 90 W
• Device Charging: Up to 60 W charging for devices connected via USB-C® port
• Construction: Metal, black finish, integral mounting flanges; Vented top, front, bottom, and sides
• Mounting: Surface mount for mounting under table; Attaches to a single rack rail
• Dimensions: Height: 1.58 in. (40 mm)
• Width: 9.25 in. (235 mm)
• Depth: 8.20 in. (208 mm)

Lenovo M920q Tiny Specs

• Operating System: Windows 10 Pro (64-Bit)
• Processor: Intel Q370
• CPU: 2.4 GHz Intel Core i7-8700T 6-Core
• Maximum Boost Speed: 4.0 GHz
• L3 Cache: 12 MB
• Memory Type: 2666 MHz DDR4
• Total Installed Memory: 8 GB
• Memory Configuration: 1 x 8 GB (User-Replaceable)
• Maximum Memory Capacity: 32 GB
• Memory Slot Type: 260-Pin SO-DIMM
• Memory Slots: (1 Available)
• Buffered Memory: No
• ECC Memory: No
• Graphics Type: Integrated
• GPU: Intel UHD Graphics 630
• Total Drive Bays: 1 x 2.5" (Internal)
• SSD Slots: 1 x M.2
• Solid State Storage: 1 x 256 GB M.2 PCIe
• Optical Drive: No

Input/Output Ports

• 2 x USB-A 3.1/3.2 Gen 2
• 3 x USB-A 3.0 / 3.1/3.2 Gen 1
• USB-C
• 1 x USB 3.0 / 3.1/3.2 Gen 1
• Display I/O
• 1 x DisplayPort
• 1 x HDMI

Audio Input/Output

• 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
• Built-In Speakers: 1
• Built-In Microphones: 1
• Network I/O: 1 x RJ45 (Gigabit)
• Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
• Bluetooth: 5.0
• Keyboard & Mouse: Keyboard

• Full-Size Keyboard with Number Pad

• Pointing Device: USB Mouse

General

• Power Supply: 90 W with
• Mounting-Hole Pattern: 75 x 100 mm
• Dimensions: 7 x 7.2 x 1.4" / 179 x 182.9 x 34.5 mm
• Weight: 2.87 lb / 1.3 kg
• Package Weight: 7.785 lb
• Box Dimensions (LxWxH): 19.45 x 10.85 x 5.8"

Vaddio ROBOSHOT 30E USB Specs

• Outputs/protocols: USB 3.0, HDMI, IP (H.264)
• Aspect ratio: USB: 16:9, 3:2, and 4:3; HDMI: 16:9 (all resolutions) IP (H.264) Streaming: 16:9, 3:2 and 4:3
• HDMI resolutions/frame rates:  FHD: 1080p/60/59.94/50/29.97/25,1080i/60/59.94/50; HD: 720p/60/59.94/50
• Streaming resolutions/frame rates: Simultaneous USB 3.0 up to 1080p/60 and IP (RTSP or RTMP format with H.264 compression) up to 1080p/30
• Image device: 1/2.5 Type Exmor R CMOS Sensor
• Pixels: 8.51 million; (8.57M Total Megapixels)
• Lens/Zoom: 12E MODELS: 12x optical zoom, f=4.4mm wide end to 88.4mm tele end, F2 to F3.8; 30E MODELS: 30x zoom, 20x optical zoom + 10x Intellizoom, f=4.4mm wide end to 88.4mm tele end, F2 to F3.8
• Horizontal FOV: 12E MODELS: 70.2º wide end to 6.8º tele end | 30E MODELS: 70.2º wide end to 3.1º tele end
• Pan angle speed: ±150°, 0.35°/sec to 120°/sec
• Tilt angle speed: +90, -30°, 0.35°/sec to 120°/sec
• Min. working distance: 229mm (wide), 800mm (tele)
• Min. illumination: 1.6 lux; 100+ lux recommended
• Electronic Shutter Speed: 1/1 to 1/10000 sec.
• Backlight compensation: On/off
• Aperture/detail: 16 steps
• Focusing system: Auto Focus / Manual Focus Mode / One-push Trigger Mode
• Gain: Auto / Manual (0 to 33 dB)
• White balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
• S/N ratio: More than 50 dB
• Power: PoE+
• Remote management: IR Remote, web interface, Telnet and RS-232 command APIs
• Enhanced Wide Dynamic Range: Yes
• Spotlight Compensation Mode: Yes
• Noise Reduction: Yes
• Presets: 16 + Custom Home
• Invertible: Yes
• Motors: Silent BLDC Direct Drive Motors
• Warranty: 2 years plus option for purchasing additional 3 years
• Weight: 4.85 lbs (2.2 kg)
• Height: 6.94" (17.63 cm)
• Width: 7.05" (17.91 cm)
• Depth: 6.75" (17.15 cm)
• Operating/storage temperature: 0°C to +40°C (32°F to 104°F)
• Operating/storage humidity: 20% to 80% RH, non-condensing

Shure Intellimix P300 Specs

General

• Control Software: Shure Designer
• Input: (2) 3-pin block connector (Active Balanced)
• Output: (2) 3-pin block connector (Impedance Balanced)
• Mobile: (1) TRRS 3.5 mm (1/8")
• USB Connections: (1) USB 2.0, Type B | Single port carries 2 input and 2 output channels (Summed mono)
• Network Connections (Dante Digital Audio): (1) RJ45 | 10 Dante Inputs , 8 Dante Outputs
• Polarity: Non-inverting, any input to any output
• Thermal Power Dissipation: Maximum 17.5 W (60 BTU/hr) | typical 14.6 W (50 BTU/hr)

Audio

• Frequency Response: +1, -1.5 dB | 20 to 20,000 Hz
• Dante Digital Audio Sampling Rate: 48 kHz
• Dante Digital Audio Bit Depth: 24
• USB Audio Sampling Rate: 48 kHz
• USB Audio Bit Depth: 16, 24
• Latency (Does not include Dante latency)
• Firmware 4.1 and newer: Dante 1-8 in to Dante out (AEC enabled) 15.4 ms | Dante 1-8 in to Dante out (AEC disabled) 8.7 ms | Dante 9-10 in to Dante out 3.4 ms | Analog in to Analog out 3.8 ms
• Firmware 3.1 and older: Dante 1-8 in to Dante out (AEC enabled) 12.5 ms | Dante 1-8 in to Dante out (AEC disabled) 5.8 ms | Dante 9-10 in to Dante out 1.8 ms | Analog in to Analog out 2.2 ms

Analog Connections (Block Connectors)

• Dynamic Range: 20 Hz to 20 kHz, A-weighted, typical
• Analog Connections Analog-to-Dante: 113 dB
• Analog Connections Dante-to-Analog: 117 dB
• Equivalent Input Noise: 20 Hz to 20 kHz, A-weighted, input terminated with 150Ω
• Line: -86 dBV
• Aux: -98 dBV
• Total Harmonic Distortion: @ 1 kHz, 0 dBV Input, 0 dB analog gain | <0.05%
• Common Mode Rejection Ratio: 150Ω balanced source @ 1 kHz | >50 dB
• Input Impedance: 9.6 kΩ
• Input Clipping Level: Line +27 dBV | Aux +15 dBV
• Output Impedance: 80 Ω
• Output Clipping Level: Line +20 dBV | Aux +0 dBV | Mic -26 dBV

Mobile Connection (3.5 mm Connector)

• Pin Assignments: Tip Audio Input (Left) | Ring 1 Audio Input (Right ) | Ring 2 Ground | Sleeve Audio Output (To Phone)
• Dynamic Range: 20 Hz to 20 kHz, A-weighted, typical | Analog-to-Dante 99 dB | Dante-to-Analog 90 dB
• Equivalent Input Noise: 20 Hz to 20 kHz, A-weighted, input terminated with 20Ω | -95 dBV
• Total Harmonic Distortion: @ 1 kHz, 0 dBV Input, 0 dB analog gain | <0.05%
• Input Impedance: 3.7 kΩ
• Input Clipping Level: +4 dBV
• Output Impedance: 1.4 kΩ
• Output Clipping Level: Output terminated with 2.2 kΩ | -20 dBV

Networking

• Cable Requirements: Cat 5e or higher (shielded cable recommended)

Physical

• Power Consumption: 17.5 W, maximum
• Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
• Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
• Operating Temperature Range: −6.7°C (20°F) to 50°C (122°F)
• Dimensions (HxWxD): 1.6 x 8.3 x 8.9 in. (4 x 21 x 22.6 cm)
• Weight: 1710 g (3.8 lbs)

Shure MXN5W-C Specs

• Connector Type: RJ45
• Power Requirements: Power over Ethernet (PoE) Class 0 or PoE Plus Class 4
• Power Consumption:
• Power over Ethernet (PoE): 12 W maximum (11 W typical)
• PoE Plus: 24 W maximum (23 W typical)

• Weight: 6.5 lbs (2.95 kg)
• Product Dimensions: H x W x D: 12 x 12 x 4 in. (304.8 x 304.8 x 101.6 mm)
• Control Software: Shure Designer
• Plenum Rating: UL 2043 (Suitable for Air Handling Spaces)
• Operating Temperature Range:−6.7°C (20°F) to 40°C (104°F)
• Storage Temperature Range:−29°C (-20°F) to 74°C (165°F)
• Frequency Response (-3 dB): 120 Hz to 20 kHz
• Maximum Output Level

At 1 metre

• Power over Ethernet (PoE): 92 dB SPL
• PoE Plus: 98 dB SPL

• Coverage Angle
• Average of 1-octave band centred on 4 kHz: 94°

• Digital Signal Processing
• Delay, Limiter, Signal Generator, Equaliser (4-band Parametric)

Latency

Not including Dante latency

• 1.5 ms

Shure MXA910 Specs

Hardware

• Network Ethernet Port: The network port carries all audio, power, and control data.
• Network Port: RJ-45 jack for network connection.
• Network Status LED (Green):

• Off = no network link
• On = network link established
• Flashing = network link active

• Network Speed LED (Amber):

• Off = 10/100 Mbps
• On = 1 Gbps

LED Light Bar

• The LED on the microphone indicates whether the microphone is active or muted; identifies the hardware; and provides confirmation of firmware updates.

• Microphone Status | LED Behavior / Colour

• Active: Green (solid)
• Mute: Red (solid)
• Hardware identification: Green (flashing)
• Firmware update in progress: Green (progresses along bar)

• Reset

• Network reset: Red (progresses along bar)
• Factory reset: Triggers device power-up
• Error: Red (split, alternate flashing)
• Device power-up: Multi-colour flash, Blue (moves quickly back and forth across bar)

**Note: When the LED is disabled, the LED still illuminates while the device is powering up and when an error state occurs.

Customising Lighting Settings

Custom LED brightness, colours, and behaviours are assignable in the control software. They can also be controlled through an external control system:

• Open the Configuration tab
• Select Light Bar

Mute LED Behaviour

• The lighting for mute and active microphone states is configurable to match the behaviour of other devices in conference rooms. In the LIGHT BAR PROPERTIES menu, use the drop-down menus to select LED settings.

Dimming and Disabling

• To dim or turn off the LED, use the brightness fader.

Power Over Ethernet (PoE)

• This device requires PoE to operate. It is compatible with both Class 0 and Class 3 PoE sources.

Power over Ethernet is delivered in one of the following ways:

• A network switch that provides PoE
• A PoE injector device

Physical Information

• Plenum rated: certified compliant with UL2043 standard
• Dust rating: IEC 60529 IP5X Dust Protected
• Integrated LED light bar has 19 colour options and 5 level of brightness
• Mounting Flexibility

Installation

Versatile installation options include flush mount (ceiling grid), VESA mount, wire rope suspension and hard ceiling mount

• A910-25MM: Configures a 600mm Ceiling Array for a 625mm grid
• A910-JB: Allows the Ethernet cable connected to the array to be installed inside flex conduit
• A910-HCM Hard Ceiling Mount: Can be pre-installed in the ceiling and the MXA910 installed later using the access door. Provides knockouts for conduit connections.

Dell C7520QT Specs

General

• Product Type: LED-backlit LCD flat panel display
• Diagonal Size: 74.52"
• Diagonal Class: 75"
• Combined With: Touchscreen (multi-touch)
• Power Consumption (On mode): 140 W
• Power Consumption Operational: 160 Watt
• Commercial Use: Yes - interactive
• TV Tuner Presence: No
• TV Tuner: No tuner
• Video Interface: HDMI
• HDMI Ports Qty: 3 ports
• PC Interface: VGA (HD-15), DisplayPort

Display

• LCD Backlight Technology: LED backlight
• LCD Display Technology: IPS
• Resolution: 3840 x 2160
• Display Format: 4K UHD (2160p)
• Image Aspect Ratio: 16:9
• Coating: Anti-glare, 9H Hard
• Image Contrast Ratio: 1200:1
• Brightness: 350 cd/m²
• Viewing Angle (Vertical): 178°
• Viewing Angle: 178°
• Response Time: 8 ms
• Additional Features: Security lock slot (cable lock sold separately), Flatfrog InGlass Touch Technology, stylus with 2 mm tips support, up to 4 pens support, 1.2 mm (typ) accuracy

Touch Screen

• Touch Technology: Flatfrog InGlassTM
• Accuracy: 1.2mm (typ)
• Stylus Diameter: 2mm

Audio System

• Speaker System: 2 speakers
• Output Power / Total: 40 Watt
• Speakers: 2 x main channel speaker - 20 Watt

Connector Type

• DisplayPort
• VGA input
• LAN
• 3 x HDMI input
• 3 x USB 3.0 downstream
• 3 x USB 3.0 upstream
• PoweredUSB
• Audio line-out
• Audio line-in
• Serial

Interactivity

• USB HID Multitouch & Pen: Up to 20 points touch, Up to 4 pens
• Technology: InGlass Touch Technology

Sustainability Information

• ENERGY STAR Certified: Yes

Stands & Mounts

• VESA Compatibility: Yes
• Flat Panel Mount Interface: 400 x 400 mm

Power

• Power Device: Power supply
• Input Voltage: AC 120/230 V (50/60 Hz)
• Power Consumption Sleep: 0.3 Watt
• Power Consumption Stand by: 0.3 Watt

Environmental Parameters

• Min Operating Temperature: 32 °F
• Max Operating Temperature: 104 °F
• Humidity Range Operating: 20 - 80% (non-condensing)

Physical

• Weight: 141.09 lbs
• Dimensions: 68.3 x 40.1 x 3.1" / 173.5 x 101.9 x 7.9 cm
• Package Weight: 167.55 lb
• Box Dimensions (LxWxH): 77.5 x 49.25 x 13.25"
